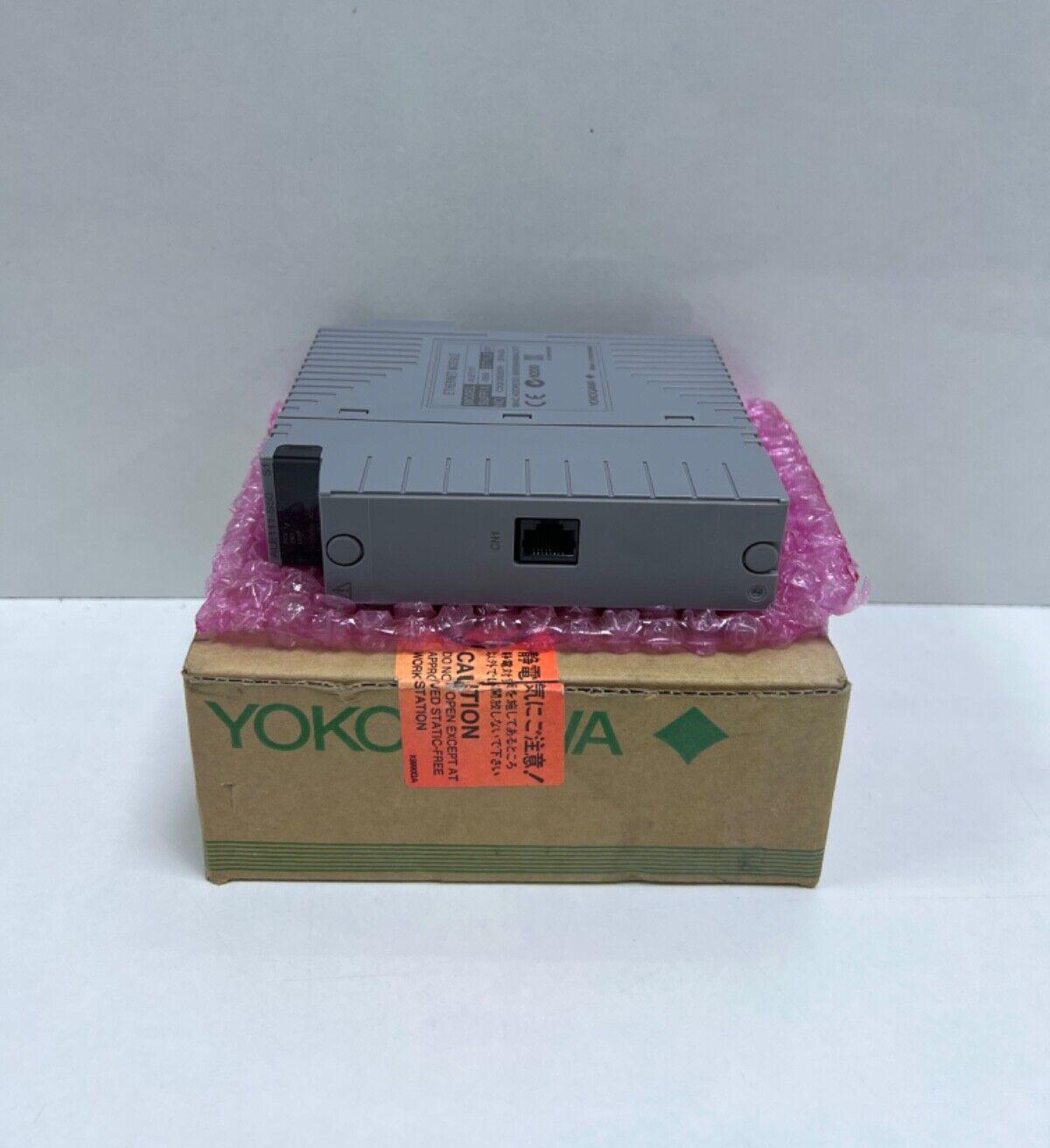

Yokogawa ALE111-S50 Model ALE111 Ethernet Communication Module

This document describes about Model ALE111 Ethernet Communication Module used with a safety control station (SCS) for performing Modbus communication. By using the SCS’s Modbus slave communication function, the data in SCS can be set or referred to by the Modbus master which is as separate system from SCS via a Ethernet communication module. This Ethernet communication module can be mounted on SSC60□ and SSC50□ safety control units and SNB10D safety node unit that are connected with safety control units by ESB bus

Specifications

• Physical layer interface IEEE 802.3 10BASE-T Half-duplex

• Connection method Point-to-point

• Connector RJ-45

• Transmission speed 10 Mbps

• Transmission route 100 ohm twisted-pair cable (not shielded)

• Transmission distance 1 segment, 100 m (in between SCS and other systems, or SCS and HUB)

• Installation method Mounted on SSC60, SSC50, or SNB10D (*2)

• No. of ports One port

• Media access control CSMA/CD

• Communication functions Modbus slave communication function

• Current consumption 0.5 A
