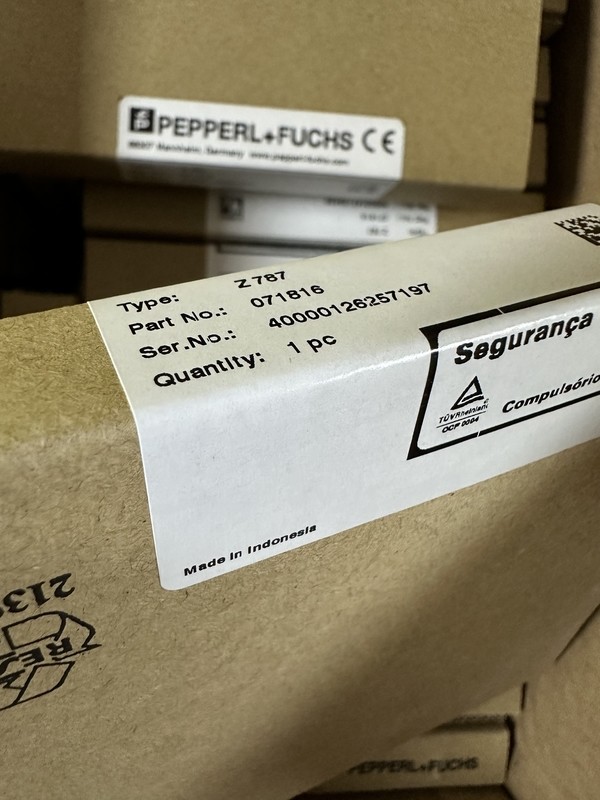

    650mW PEPPERL FUCHS Zener Barrier Z787 DIN Rail Mountable

    Ask Lasest Price
    Brand Name : PEPPERL FUCHS
    Model Number : Z787
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100pcs per month
    Delivery Time : Negotiable
    • Product Details
    • Company Profile

    650mW PEPPERL FUCHS Zener Barrier Z787 DIN Rail Mountable

    PEPPERL FUCHS Zener Barrier Z787 DIN rail mountable


    General specifications
    Type DC version, positive polarity
    Electrical specifications
    Nominal resistance 300 Ω
    Series resistance terminals 1, 8: max. 327 Ω
    Voltage drop terminals 4, 5: 1.2 V + (36 Ω x signal current)
    Fuse rating 50 mA
    Hazardous area connection
    Connection terminals 1, 2; 3, 4
    Safe area connection
    Connection terminals 5, 6; 7, 8
    Working voltage
    Supply loop max. 27 V
    Measurement loop max. 26.5 V at 10 µA
    Conformity
    Degree of protection IEC 60529
    Ambient conditions
    Ambient temperature -20 ... 60 °C (-4 ... 140 °F)
    Storage temperature -25 ... 70 °C (-13 ... 158 °F)
    Relative humidity max. 75 % , without condensation
    Mechanical specifications
    Degree of protection IP20
    Connection screw terminals
    Core cross section max. 2 x 2.5 ... mm2
    Mass approx. 150 g
    Dimensions 12.5 x 115 x 116 mm (0.5 x 4.5 x 4.6 inch) (W x H x D)
    Height 115 mm
    Width 12.5 mm
    Depth 116 mm
    Construction type modular terminal housing , see system description
    Mounting on 35 mm DIN mounting rail acc. to EN 60715:2001
    Data for application in connection with hazardous areas
    EU-type examination certificate BAS 01 ATEX 7005
    Marking Ex-Hexagon II (1)GD, I (M1) [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I
    Voltage 28 V
    Current 93 mA
    Power 650 mW
    Supply
    Maximum safe voltage 250 V
    Series resistance min. 301 Ω
    Certificate TÜV 99 ATEX 1484 X
    Marking Ex-Hexagon II 3G Ex nA IIC T4 Gc
    Directive conformity
    Directive 2014/34/EU EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010
