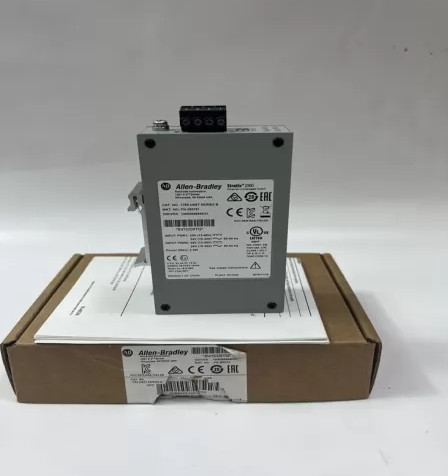

1783-US5T is an industrial Ethernet switch from Allen-Bradley

1783-US5T is an industrial Ethernet switch from Allen-Bradley. This product is part of the Stratix 2000 unmanaged ethernet switch catalog featuring Five (5) Fast Ethernet copper ports supporting 10/100 Mbps transmission speed. This Ethernet switch is powered by an external 24 VDC / 24 VAC supply voltage with a power consumption of 3.4 Watts.

Technical specifications

Brand Allen-Bradley

Manufacturer: Rockwell Automation / Allen-Bradley

Product Family: Stratix Ethernet Switch

Product Type: Stratix 2000 managed switch

Part Number: 1783-US5T

No. of copper ports: Five (5) copper ports

Transmission speed: 10 / 100 mbps

No. of fiber ports: None

Supply voltage range 12-48V DC, 18-30V AC, 50/60 Hz

Nominal Supply voltage 24 VAC / VDC

Power consumption 3.4 Watts

Inrush Current: 1.85 A

Part Number/Catalog No 1783-US5T

Total Ports 5

RJ45 Ports 5 Fast Ethernet

SFP Ports 0

Power Input 24 V (12-48 V DC, 18-30 V AC, 50/60 Hz), SELV

Max Power Consumption 3.4 W

Nom Current DC 180 mA; AC 360 mA

Max Current DC 380 mA; AC 750 mA

Wire Size Ground Connection 2.5 mm2 (14 AWG) Copper Wire Suitable for 187 degrees F (86 degrees C) Above Surrounding Ambient Temperature Outside the Enclosure, with Suitable Ring Terminal

Wire Size DC Power Connection 4 x 0.25 mm2 (12 or 24 AWG) Twisted-Pair Copper Wire Suitable for 187 degrees F (86 degrees C) Above Surrounding Ambient Temperature Outside the Enclosure

Power Terminal Screw Torque 4.5x 5.0 in -lb (0.50 x 0.56 N - m)

Max Ground Terminal Screw Torque 8.05 in -lb

Enclosure Type Rating Open-Style/None

Dimensions 4.51 x 3.02 x 1.17 in (114.5 x 76.8 x 29.6 mm)

Connector type RJ45

UPC 884951980150

Wire type Category 5 (Cat5) based on ISO/IEC 24702; Category 5e (Cat5e) in compliance with TIA 568-B.1

Enclosure type rating None (open-style)

Mounting DIN Rail

Operating shock 15 g

Operating Temperature -10 °C - +60 °C (-4 °F - +140 °F)
