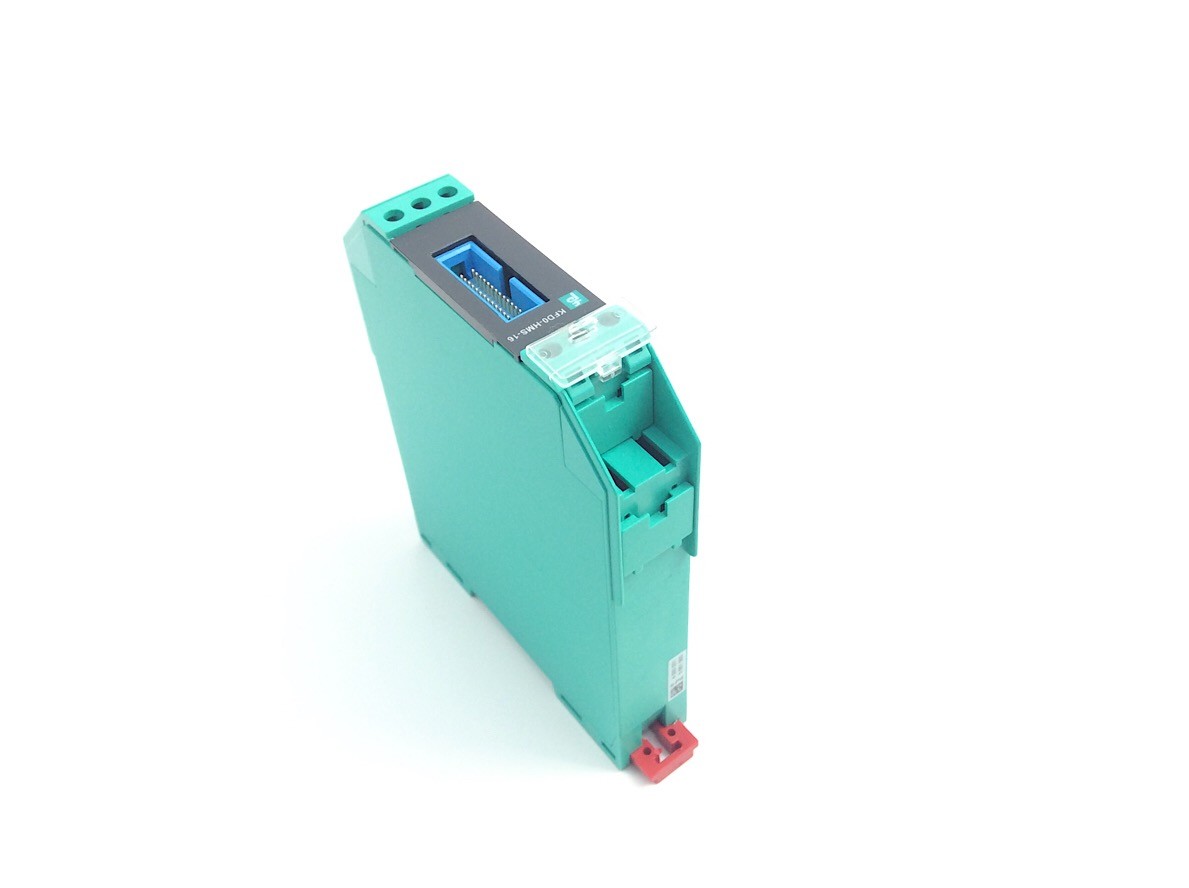

Pepperl Fuchs HART MUX Secondary Module KFD0-HMS-16

16-channel

No external power required

HART field device input (revision 5 to 7)

Used with HART MUX primary module KFD2-HMM-16

Up to SIL 3 acc. to IEC/EN 61508

General specifications

HART MUX Secondary Module

Functional safety related parameters

Safety Integrity Level (SIL) SIL 3

Supply

Connection via 14-channel flat cable from the KFD2-HMM-16 primary module

HART signal channels (non-intrinsically safe)

Conformity HART field device input (revision 5 to 7)

Connection 26-pin flat cable for analog connections

14-pin flat cable for primary module/secondary module connection between KFD2-HMM-16 and KFD0-HMS-16

Leakage current < 3 µA at -20 ... 85 °C (-4 ... 185 °F)

Terminating resistor external 230 ... 500 Ω standard (up to 1000 Ω possible)

Output voltage ≥ 400 mV ss (with the terminator resistance specified above)

Output resistance 100 Ω or smaller, capacitive coupling

Input impedance according to HART specification

Input voltage range 0.08 ... 4 V ss ; typ. ± 5.2 V as local reference

Indicators/settings

Labeling space for labeling at the front

Directive conformity

Electromagnetic compatibility

Directive 2014/30/EU EN 61326-1:2013 (industrial locations)

Conformity

Degree of protection IEC 60529:2001

Ambient conditions

Ambient temperature -20 ... 65 °C (-4 ... 149 °F)

Mechanical specifications

Degree of protection IP20

Mass approx. 100 g

Dimensions 20 x 93 x 115 mm (0.8 x 3.7 x 4.5 inch) (W x H x D) , housing type B1

Mounting on 35 mm DIN mounting rail acc. to EN 60715:2001

Data for application in connection with hazardous areas

Certificate PF 07 CERT 1143 X

Marking Ex-Hexagon II 3G Ex nA IIC T4 Gc

Directive conformity

Directive 2014/34/EU EN 60079-0:2012+A11:2013 , EN 60079-15:2010
