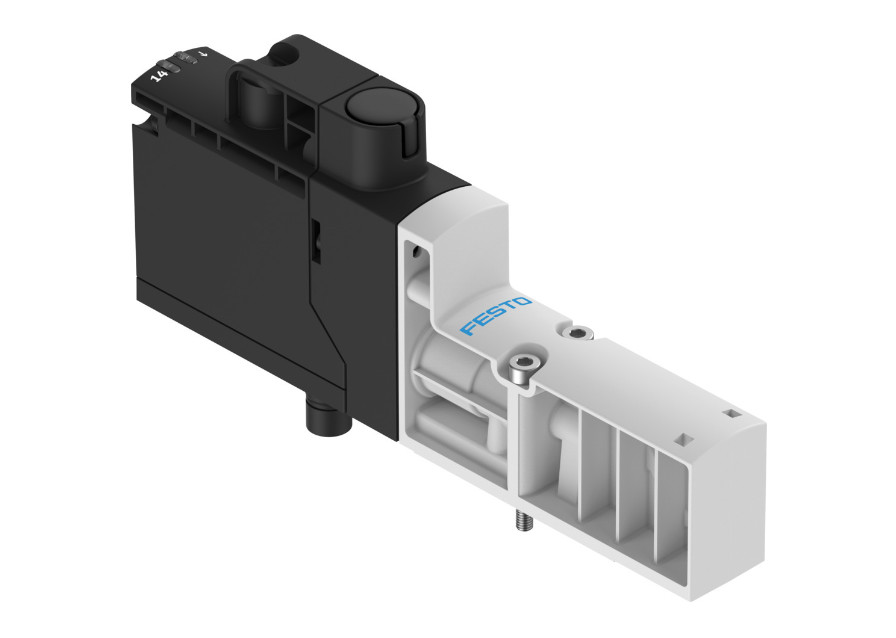

Festo Air solenoid valve VSVA-BT-M32CS1-MS-A2-1T5L-PA

• Valve function

  3/2, closed, monostable

• Actuation type

  Electrical

• Width

  18 mm

• Standard nominal flow rate

  125 l/min

• Standard nominal flow rate exhaust air

  125 l/min

• Operating pressure

  0.3 MPa ... 1 MPa

• Operating pressure

  3 bar ... 10 bar

• Structural design

  Plate seat

• Reset method

  Mechanical spring

  Pneumatic spring

• Degree of protection

  IP65

• Sealing principle

  Soft

• Mounting position

  Any

• Manual override

  None

• Type of control

  Pilot-controlled

• Pilot air supply port

  Internal

• Flow direction

  Non-reversible

• Symbol

  00995776

• Lap

  Underlap

• Signal status display

  Yellow LED, valve control

  Green LED, pressure switch, exhausted status

• Switching position sensing

  Via pressure switch, exhausted status

• Duty cycle

  100%

• Max. positive test pulse with 0 signal

  2000 µs

• Max. negative test pulse on 1 signal

  1200 µs

• Nominal operating voltage DC

  24 V

• Coil characteristics

  24 V DC: 1.6 W

• Permissible voltage fluctuations

  +/- 10 %

• Operating medium

  Compressed air as per ISO 8573-1:2010 [7:4:4]

• Information on operating and pilot media

  Operation with oil lubrication not possible

• Vibration resistance

  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6

• Shock resistance

  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27

• Corrosion resistance class (CRC)

  0 - No corrosion stress

• LABS (PWIS) conformity

  VDMA24364-B1/B2-L

• Temperature of medium

  -5 °C ... 50 °C

• Pilot medium

  Compressed air as per ISO 8573-1:2010 [7:4:4]

• Ambient temperature

  -5 °C ... 50 °C

• MTTF, subcomponent

  452 years, pressure switch

• Product weight

  110 g

• Electrical connection

  Plug-in

• Type of mounting

  On sub-base

• Pneumatic connection 2

  G1/8

• Pneumatic connection 4

  G1/8

• Note on materials

  RoHS-compliant

• Seals material

  HNBR

  NBR

• Housing material

  PA-reinforced

• Material of screws

  Steel, galvanized

• Switching element function

  N/C contact
