    0.8kV 2.5m Festo Connecting Cable NEBS-L1G4-K-2.5-LE4 Field Device End

    Ask Lasest Price
    Brand Name : Festo
    Model Number : NEBS-L1G4-K-2.5-LE4
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100pcs per month
    Delivery Time : Negotiable
    • Product Details
    • Company Profile

    0.8kV 2.5m Festo Connecting Cable NEBS-L1G4-K-2.5-LE4 Field Device End

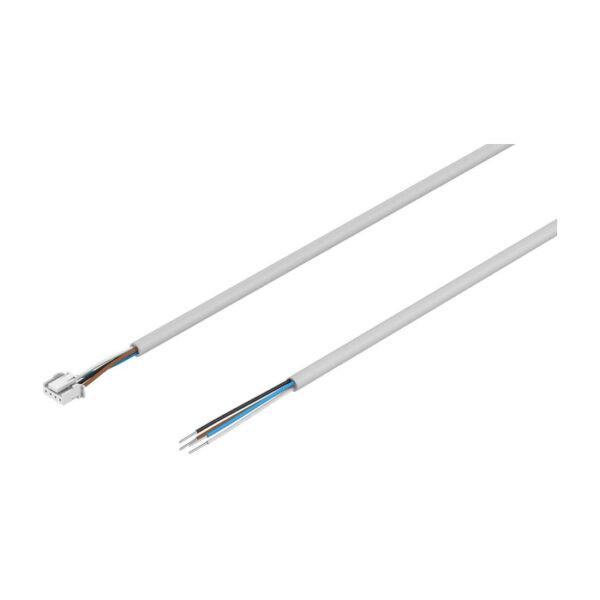

    Festo Connecting cable NEBS-L1G4-K-2.5-LE4 Field device end


    • Cable designation

      With label holder

    • Contact durability

      100

    • Product weight

      53 g

    • Electrical connection 1, function

      Field device end

    • Electrical connection 1, design

      Rectangular

    • Electrical connection 1, connection type

      Socket

    • Electrical connection 1, cable outlet

      Straight

    • Electrical connection 1, connection technology

      Connection diagram L1J

    • Electrical connection 1, number of pins/wires

      4

    • Electrical connection 1, occupied pins/wires

      4

    • Electrical connection 1, type of mounting

      Snap-locking

    • Electrical connection for input 1, connection pattern

      00995720

    • Electrical connection 2, function

      Control side

    • Electrical connection 2, connection type

      Cable

    • Electrical connection 2, connection technology

      Open end

    • Electrical connection 2, number of pins/wires

      4

    • Electrical connection 2, occupied pins/wires

      4

    • DC operating voltage range

      0 V ... 30 V

    • Current rating at 40° C

      1 A

    • Surge resistance

      0.8 kV

    • Cable length

      2.5 m

    • Cable characteristic

      Standard

    • Connector cable test conditions

      Test conditions on request

    • Bending radius, fixed cable installation

      ≥13 mm

    • Bending radius, flexible cable installation

      ≥42 mm

    • Cable diameter

      4.1 mm

    • Cable diameter tolerance

      ± 0.15 mm

    • Cable design

      4 x 0.17 mm²

    • Nominal conductor cross section

      0.17 mm²

    • Wire ends

      Cut off bluntly

    • Degree of protection

      IP40

    • Note on degree of protection

      In mounted state

    • Ambient temperature

      -20 °C ... 60 °C

    • Ambient temperature with flexible cable installation

      -5 °C ... 60 °C

    • Storage temperature

      -20 °C ... 60 °C

    • CE marking (see declaration of conformity)

      As per EU RoHS directive

    • UKCA marking (see declaration of conformity)

      To UK RoHS instructions

    • LABS (PWIS) conformity

      VDMA24364 zone III

    • Note on materials

      RoHS-compliant

    • Contamination level

      2

    • Corrosion resistance class (CRC)

      4 - Particularly high corrosion stress

    • Material of cable sheath

      PVC

    • Color cable sheath

      Gray

    • Housing material

      PA

    • Housing colour

      White

    • Material of pin contacts

      Tin-plated bronze

    • Insulating sheath material

      PVC
