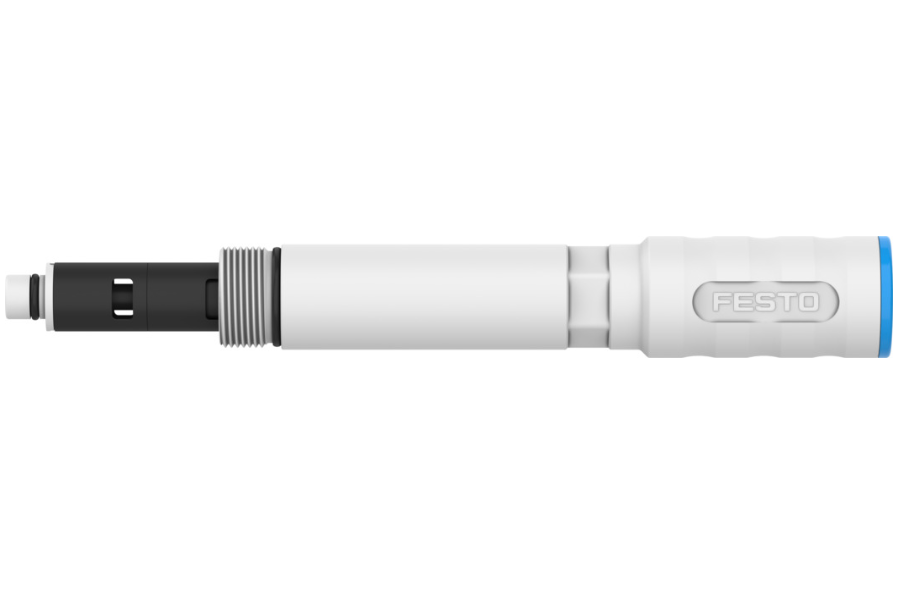

Festo Vacuum generator cartridge OASP-G4-14-L3-UA Pneumatic muffler open

• Nominal width of Laval nozzle

  1.4 mm

• Muffler construction type

  Open

• Ejector characteristics

  High suction rate

• Integrated function

  Pneumatic muffler open

• Structural design

  Vacuum generator 3-stage

• Symbol

  00991489

• Operating pressure for max. suction rate

  0.8 MPa

• Operating pressure for max. suction rate

  8 bar

• Operating pressure for max. suction rate

  116 psi

• Operating pressure

  0.1 MPa ... 0.8 MPa

• Operating pressure

  1 bar ... 8 bar

• Operating pressure

  14.5 psi ... 116 psi

• Operating pressure for max. vacuum

  0.79 MPa

• Operating pressure for max. vacuum

  7.9 bar

• Operating pressure for max. vacuum

  114.55 psi

• Max. vacuum

  81 %

• Nominal operating pressure

  0.6 MPa

• Nominal operating pressure

  6 bar

• Nominal operating pressure

  87 psi

• Max. suction rate with respect to atmosphere

  245 l/min

• Air supply time at nominal operating pressure

  0.37 s

• Operating medium

  Compressed air as per ISO 8573-1:2010 [7:4:4]

• Information on operating and pilot media

  Operation with oil lubrication not possible

• Corrosion resistance class (CRC)

  2 - Moderate corrosion stress

• LABS (PWIS) conformity

  VDMA24364-B1/B2-L

• Suitability for the production of Li-ion batteries

  Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils

• Temperature of medium

  0 °C ... 60 °C

• Cleaning advice

  Soap suds (except silencers)

• Noise level at nominal operating pressure

  60 dB(A)

• Ambient temperature

  0 °C ... 60 °C

• Product weight

  123 g

• Type of mounting

  Direct fastening via thread

• Seals material

  NBR

• Female nozzle material

  PA-reinforced

• Muffler material

  PA-reinforced

  PU foam

• Material of jet nozzle

  PA-reinforced

• Mounting position

  Any
