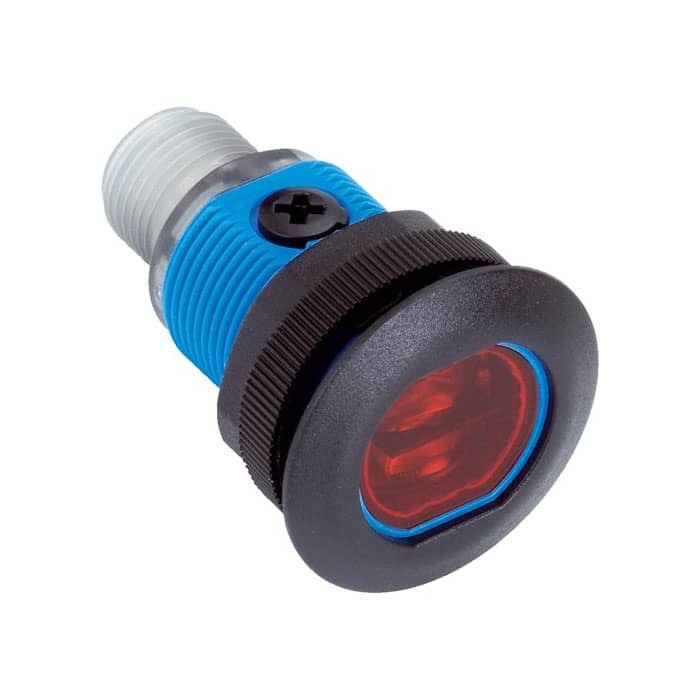

SICK GRL18S-F2336 | GR18 CYLINDRICAL PHOTOELECTRIC SENSORS

Features

Supply voltage UB 10 V DC ... 30 V DC 1)

Ripple < 5 Vpp2)

Current consumption 30 mA

Switching output PNP

Switching mode Dark switching

Signal voltage PNP HIGH/LOW VS - (≤ 3 V) / approx. 0 V

Output current Imax. ≤ 100 mA 3)

Response time < 500 µs 4)

Switching frequency 1,000 Hz 5)

Connection type Connector M12, 3-pin

Circuit protection A 6)

B 7)

D 8)

Protection class III

Polarisation filter ✔

Housing material Plastic, ABS

Optics material Plastic, PMMA

Enclosure rating IP67

Items supplied Fastening nuts (2 x)

Electromagnetic compatibility (EMC) EN 60947-5-2

Ambient operating temperature –25 °C ... +55 °C 9)

Ambient temperature, storage –40 °C ... +70 °C

UL File No. NRKH.E348498 & NRKH7.E348498

1) Limit values. Operated in short-circuit protected network: max. 8 A.

2) May not fall below or exceed UV tolerances.

3) At Uv > 24 V or ambient temperature > 49 °C, IA max. = 50 mA.

4) Signal transit time with resistive load.

5) With light/dark ratio 1:1.

6) A = VS connections reverse-polarity protected.

7) B = inputs and output reverse-polarity protected.

8) D = outputs overcurrent and short-circuit protected.

9) At Uv<=24V and IA<50mA.
