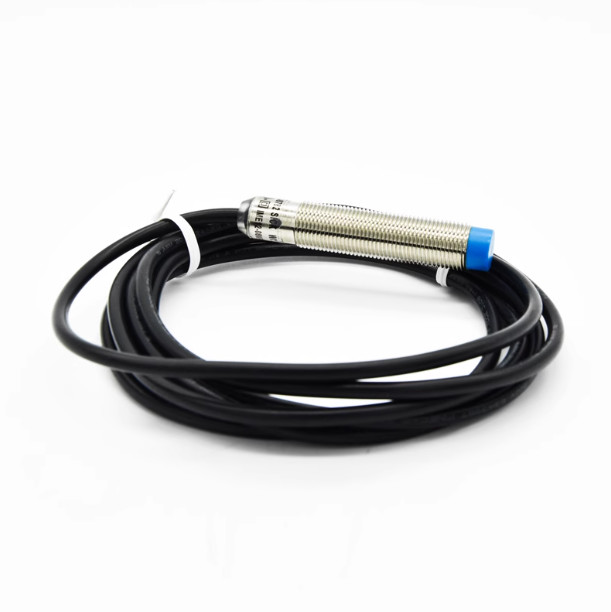

SICK IME12-08NPSZW2S | IME INDUCTIVE PROXIMITY SENSORS

Features

Housing Metric

Housing Standard design

Thread size M12 x 1

Diameter Ø 12 mm

Sensing range Sn 8 mm

Safe sensing range Sa 6.48 mm

Installation type Non-flush

Switching frequency 2,000 Hz

Connection type Cable, 3-wire, 2 m

Switching output PNP

Output function NO

Electrical wiring DC 3-wire

Enclosure rating IP67 1)

Items supplied Mounting nut, brass, nickel-plated (2x)

1) According to EN 60529.

Mechanics/electronics

Supply voltage 10 V DC ... 30 V DC

Ripple ≤ 10 %

Voltage drop ≤ 2 V 1)

Time delay before availability ≤ 100 ms

1) At Ia max.

2) Supply voltage UB and constant ambient temperature Ta.

Hysteresis 5 % ... 15 %

Reproducibility ≤ 2 % 2) 3)

Temperature drift (of Sr ± 10 %

EMC According to EN 60947-5-2

Continuous current Ia ≤ 200 mA

No load current ≤ 10 mA

Cable material PVC

Conductor size 0.25 mm²

Cable diameter Ø 3.9 mm

Short-circuit protection ✔

Power-up pulse protection ✔
