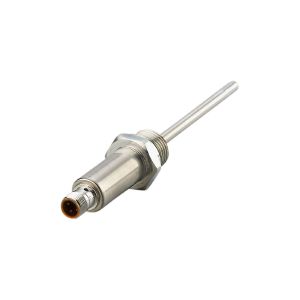

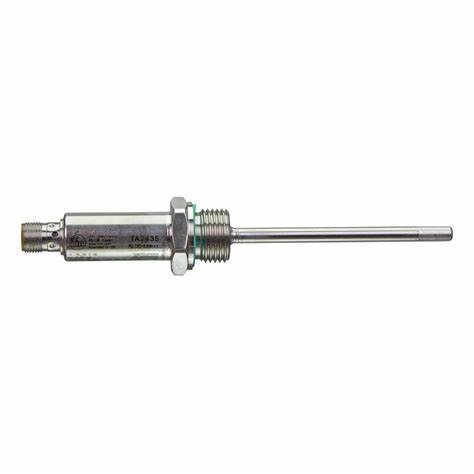

    IFM Temperature transmitter TA2435 TA-100CLER12-A-ZVG/US

    Ask Lasest Price
    Brand Name : IFM
    Model Number : TA2435
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100pcs per month
    Delivery Time : Negotiable
    • Product Details
    • Company Profile

    IFM Temperature transmitter TA2435 TA-100CLER12-A-ZVG/US

    IFM Temperature transmitter TA2435 TA-100CLER12-A-ZVG/US



    High precision across the entire temperature measurement range

    Fast response dynamics and very short power-on delay time

    Robust stainless steel housing with high pressure resistance

    High protection rating for the requirements of harsh industrial environments



    Number of inputs and outputsNumber of analog outputs: 1
    Measuring range[°C]-50...150
    Communication interfaceIO-Link
    Process connectionthreaded connection G 1/2 external thread
    Installation length EL[mm]100

    Application

    Systemgold-plated contacts
    Measuring element1 x Pt 1000; (to DIN EN 60751, class A)
    Medialiquids and gases
    Pressure rating300 bar30 MPa
    Note on pressure ratingsensorWhen mounted in adapters the specifications of the adapter data sheet apply.

    Electrical data

    Operating voltage[V]18...32 DC; (cULus - Class 2 source required)
    Current consumption[mA]< 50
    Protection classIII
    Reverse polarity protectionyes
    Power-on delay time[s]1

    Inputs / outputs

    Number of inputs and outputsNumber of analog outputs: 1

    Outputs

    Total number of outputs1
    Output signalanalog signal; IO-Link; (configurable)
    Number of analog outputs1
    Analog current output[mA]4...20
    Max. load[Ω]250; ((18...19 V); 19...32 V: 300 Ω)
    Short-circuit protectionyes
    Overload protectionyes

    Measuring/setting range

    Probe length L[mm]86
    Measuring range[°C]-50...150
    Factory setting-50...150 °C

    Accuracy / deviations

    Precision analog output[K]± 0,3 + (± 0,1 % MS)
    Temperature coefficient[% of the span / 10 K]0,1; (In case of deviation from the reference condition 25 ± 5 °C)

    Reaction times

    Dynamic response T05 / T09[s]1 / 3

    Interfaces

    Communication interfaceIO-Link
    Transmission typeCOM2 (38,4 kBaud)
    IO-Link revision1.1

    Operating conditions

    Ambient temperature[°C]-25...80
    Storage temperature[°C]-40...100
    ProtectionIP 67; IP 68; IP 69K

    Tests / approvals

    EMCDIN EN 61000-6-2
    Shock resistanceDIN IEC 68-2-2750 g (11 ms)
    Vibration resistanceDIN IEC 68-2-620 g (10...2000 Hz)
    MTTF[years]572
    UL approvalUL approval numberK002

    Mechanical data

    Weight[g]134.5
    Housingtubular
    Dimensions[mm]Ø 18.7 / L = 163.9
    Materialstainless steel (1.4404 / 316L); PEI; FKM
    Materials (wetted parts)stainless steel (1.4404 / 316L); O-ring: FKM
    Tightening torque[Nm]45
    Process connectionthreaded connection G 1/2 external thread
    Probe diameter[mm]6
    Installation length EL[mm]100
