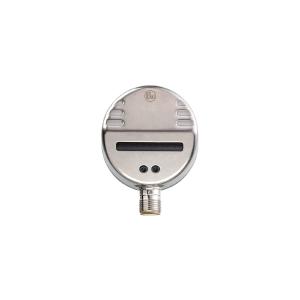

    IFM Flow monitor SI5000 SID10ABBFPKG/US-100

    Ask Lasest Price
    Brand Name : IFM
    Model Number : SI5000
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100pcs per month
    Delivery Time : Negotiable
    • Product Details
    • Company Profile

    IFM Flow monitor SI5000 SID10ABBFPKG/US-100

    IFM Flow monitor SI5000 SID10ABBFPKG/US-100


    Reliable monitoring of liquids and gases in pipes

    Variable process connection using adapters

    Easy setting of the switch points for quick set-up

    Robust stainless steel housing for use in harsh industrial environments

    LED bar graph for indication of switch point and flow



    Adjustment of the switch pointpushbuttons

    Operating conditions

    Ambient temperature[°C]-25...80
    Storage temperature[°C]-25...100
    ProtectionIP 67

    Tests / approvals

    EMCEN 61000-4-2 ESD4 kV CD / 8 kV ADEN 61000-4-3 HF radiated10 V/mEN 61000-4-4 Burst2 kVEN 61000-4-6 HF conducted10 V
    Shock resistanceDIN IEC 68-2-2750 g (11 ms)
    Vibration resistanceDIN EN 60068-2-620 g (55...2000 Hz)
    MTTF[years]298

    Mechanical data

    Weight[g]246
    Housingtubular
    Dimensions[mm]Ø 50 / L = 113
    Materialstainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PC; PBT-GF20; EPDM/X
    Materials (wetted parts)stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A
    Process connectionthreaded connection M18 x 1,5 Internal thread
    Probe diameter[mm]8.2
    Installation length EL[mm]45

    Displays / operating elements

    DisplayFunction10 x LED, three-color

    Remarks

    Pack quantity1 pcs.
