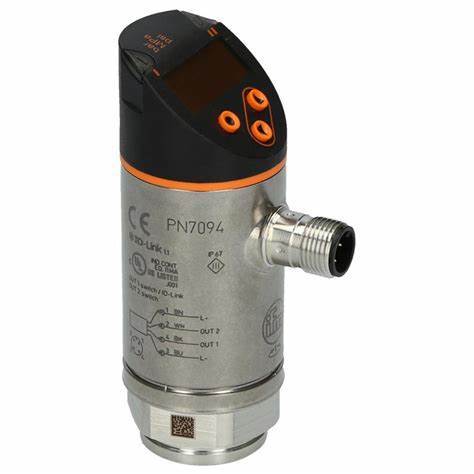

    IFM Pressure sensor with displayPN7094 PN-010-RER14-QFRKG/US/ /V

    Ask Lasest Price
    Brand Name : IFM
    Model Number : PN7094
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100pcs per month
    Delivery Time : Negotiable
    • Product Details
    • Company Profile

    IFM Pressure sensor with displayPN7094 PN-010-RER14-QFRKG/US/ /V

    IFM Pressure sensor with displayPN7094 PN-010-RER14-QFRKG/US/ /V


    Two switching outputs, one of them with IO-Link communication interface

    Red/green display for clear identification of the acceptable range

    The process connection can be rotated for optimum alignment

    With long-term stability thanks to high overload protection

    Robust design for use in harsh industrial environments




    Number of inputs and outputsNumber of digital outputs: 2
    Measuring range-1...10 bar-14.5...145 psi-0.1...1 MPa
    Process connectionthreaded connection G 1/4 Internal thread

    Application

    Systemgold-plated contacts
    Measuring elementceramic-capacitive pressure measuring cell
    Applicationfor industrial applications
    Medialiquids and gases
    Medium temperature[°C]-25...80
    Min. bursting pressure150 bar2175 psi15 MPa
    Pressure rating75 bar1087 psi7.5 MPa
    Vacuum resistance-1000 mbar-0.1 MPa
    Type of pressurerelative pressure; vacuum

    Electrical data

    Operating voltage[V]18...30 DC; (to SELV/PELV)
    Current consumption[mA]< 35
    Min. insulation resistance[MΩ]100; (500 V DC)
    Protection classIII
    Reverse polarity protectionyes
    Power-on delay time[s]< 0.3
    Integrated watchdogyes

    Inputs / outputs

    Number of inputs and outputsNumber of digital outputs: 2

    Outputs

    Total number of outputs2
    Output signalswitching signal; IO-Link; (configurable)
    Electrical designPNP/NPN
    Number of digital outputs2
    Output functionnormally open / closed; (configurable)
    Max. voltage drop switching output DC[V]2.5
    Permanent current rating of switching output DC[mA]150; (200 (...60 °C) 250 (...40 °C))
    Switching frequency DC[Hz]< 170
    Short-circuit protectionyes
    Type of short-circuit protectionyes (non-latching)
    Overload protectionyes

    Measuring/setting range

    Measuring range-1...10 bar-14.5...145 psi-0.1...1 MPa
