    M18 X 1 IP 67 IFM Inductive Sensor IG5595 IGA2005-FRKG US

    Ask Lasest Price
    Brand Name : IFM
    Model Number : IG5595
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100pcs per month
    Delivery Time : Negotiable
    • Product Details
    • Company Profile

    M18 X 1 IP 67 IFM Inductive Sensor IG5595 IGA2005-FRKG US

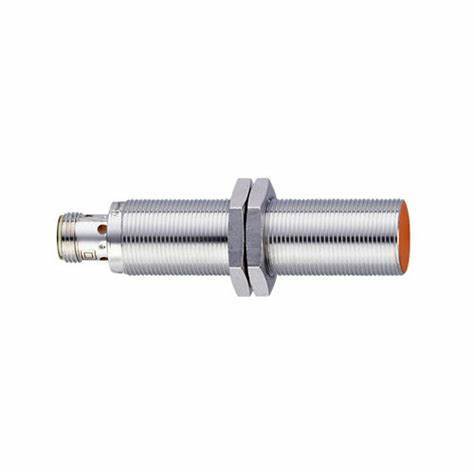

    IFM Inductive sensor IG5595 IGA2005-FRKG/US


    Output function normally open / normally closed programmable

    Two-wire technology

    Very high switching frequency

    Robust metal housing for use in harsh industrial environments

    Clearly visible indication of the switching status


    Electrical designPNP/NPN
    Output functionnormally open / closed; (selectable)
    Sensing range[mm]5
    HousingThreaded type
    Dimensions[mm]M18 x 1 / L = 70

    Application

    Systemgold-plated contacts

    Electrical data

    Operating voltage[V]10...55 DC
    Current consumption[mA]< 10
    Protection classII
    Reverse polarity protectionyes

    Outputs

    Electrical designPNP/NPN
    Output functionnormally open / closed; (selectable)
    Max. voltage drop switching output DC[V]2.5
    Max. leakage current[mA]0.5
    Permanent current rating of switching output DC[mA]400
    Switching frequency DC[Hz]700
    Short-circuit protectionyes
    Type of short-circuit protectionyes (non-latching)
    Overload protectionyes

    Monitoring range

    Sensing range[mm]5
    Real sensing range Sr[mm]5 ± 10 %
    Operating distance[mm]0...4.05

    Accuracy / deviations

    Correction factorsteel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3
    Hysteresis[% of Sr]1...20
    Switch-point drift[% of Sr]-10...10

    Operating conditions

    Ambient temperature[°C]-25...70
    ProtectionIP 67

    Tests / approvals

    EMCEN 61000-4-2 ESD4 kV CD / 8 kV ADEN 61000-4-3 HF radiated10 V/mEN 61000-4-4 Burst2 kVEN 61000-4-5 Surge0,5 kV line to line, Ri: 2 OhmEN 61000-4-6 HF conducted10 VEN 55011class B
    MTTF[years]1775
    UL approvalTa-25...70 °CEnclosure typeType 1voltage supplyClass 2File number ULE174191

    Mechanical data

    Weight[g]54.1
    HousingThreaded type
    Mountingflush mountable
    Dimensions[mm]M18 x 1 / L = 70
    Thread designationM18 x 1
    Materialbrass white bronze coated; sensing face: PBT

    Displays / operating elements

    DisplaySwitching status4 x 90° LED, yellow

    Accessories

    Items suppliedlock nuts: 2

    Remarks

    Pack quantity1 pcs.
