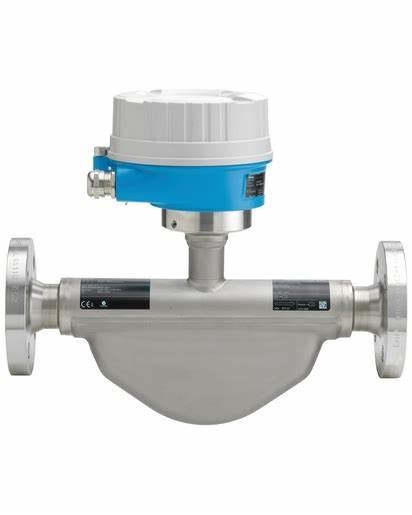

Endress Hauser 8F2B08-AABECASAFTSA Proline Promass F 200 Coriolis flowmeter

Promass F has a long standing reputation as a highly accurate device. It is suited for broadest range of applications. Promass F 200 offers in addition genuine, industry-compliant two-wire technology. This enables seamless system integration into existing infrastructures. Additional advantages are high operational safety in hazardous areas thanks to an intrinsically safe design (Ex ia) and process safety at all times enabled by Heartbeat Technology.

Potentiometric

Measuring principle
Coriolis

Product headline
Robust flowmeter with genuine loop-powered technology.
Highest measurement performance for liquids and gases in a wide range of applications.

Sensor features
Highest process safety – immune to fluctuating and harsh environments. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Mass flow: measured error ±0.1 %. Medium temperature up to +205 °C (+401 °F). Nominal diameter: DN 8 to 80 (³⁄₈ to 3").

Transmitter features
Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch control, background lighting. Integrated verification – Heartbeat Technology.
Loop-powered technology. Robust dual-compartment housing. Plant safety: worldwide approvals (SIL, Haz. area).

Nominal diameter range
DN 8 to 80 (⅜ to 3")

Wetted materials
Measuring tube: 1.4539 (904L); 1.4404; Alloy C22, 2.4602 (UNS N06022)
Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)

Measured variables
Mass flow, density, temperature, volume flow, corrected volume flow, reference density

Max. measurement error
Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.25 % Density (liquid): ±0.0005 g/cm³

Measuring range
0 to 70 000 kg/h (0 to 2570 lb/min)

Max. process pressure
PN 100, Class 600, 63K

Medium temperature range
Standard: –50 to +150 °C (–58 to +302 °F)
Option: –50 to +205 °C (–58 to +401 °F)

Ambient temperature range
–40 to +60 °C (–40 to +140 °F)

Sensor housing material
1.4301/1.4307 (304L), corrosion resistant

Transmitter housing material
AlSi10Mg, coated, 1.4404 (316L)

Degree of protection
IP66/67, type 4X enclosure

Display/Operation
4‐line backlit display with touch control
(operation from outside)
Configuration via local display and operating tools possible
Remote display available

Outputs
4‐20 mA HART (passive)
4‐20 mA (passive)
Pulse/frequency/switch output (passive)

Inputs
None

Digital communication
HART, PROFIBUS PA, FOUNDATION Fieldbus

Power supply
DC 18 to 35 V (4‐20 mA HART with/without
pulse/frequency/switch)
DC 18 to 30 V (20 mA HART, 4‐20 mA)
DC 9 to 32 V (PROFIBUS PA)

Hazardous area approvals
ATEX, IECEx, cCSAus, INMETRO, NEPSI, JPN, UK Ex

Product safety
CE, C-TICK

Functional safety
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

Metrological approvals and certificates
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

Pressure approvals and certificates
PED, CRN, AD 2000

Material certificates
3.1 material
NACE MR0175/MR0103, PMI; welding test acc. to EN ISO, ASME, NORSOK

Hygienic approvals and certificates
3-A, EHEDG, cGMP
