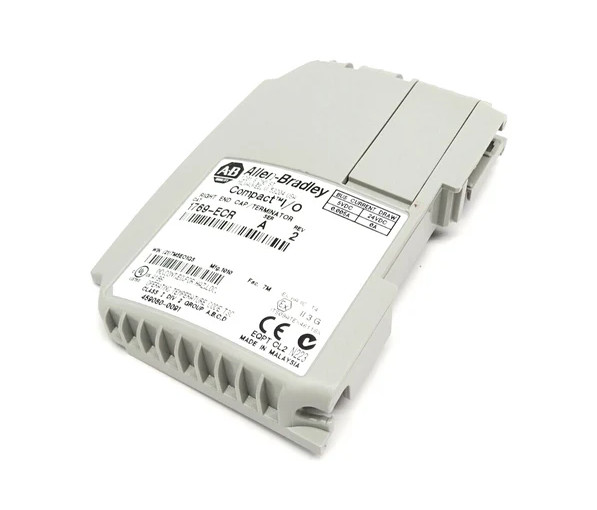

Allen-Bradley 1769-ECR is a Right End Cap (ECR) module that is used with the CompactLogix product family

1769-ECR is a Right End Cap (ECR) module that is used with the CompactLogix product family. This module is installed at the right sight of the last module of a CompactLogix assembly. It has a current draw of 5 mA at 5.1 VDC, weighs 130 g (0.286 lb) with open style enclosure.

Manufacturer Rockwell Automation

Brand Allen-Bradley

Brand Allen-Bradley

Series CompactLogix

Part Number/Catalog No. 1769-ECR

Module Type Right End Cap

Product Line CompactLogix

Current draw at 5.1V DC 5 mA

Module Type Right End Cap Module

Current draw at 24V DC 0 mA

Operating altitude 2000 m (6562 ft)

Shipping Weight 2 lbs.

North American temp code T3C

Shipping Dimensions 8X8X5 in.

IEC temp code T4

Series A and B

Shipping weight, approx 130 g (0.286 lb)

Operating Temperature 0 -60 °C or 32-140 °F

Enclosure type rating None (open style)

Maximum Bus Current Draw 5 mA at 5 volts DC

Removal and Insertion Under Power (RIUP) Not supported

Backplane Current 1.4 Amps at 24 Volts
